Filtrec FUVD040 series: We revolutionize the performance of hydraulic systems

Filtrec FUVD040 series: We revolutionize the performance of hydraulic systems

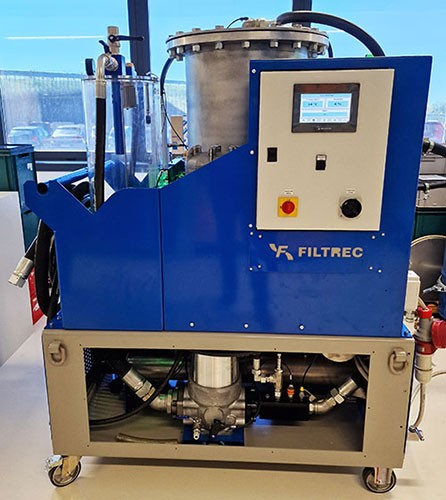

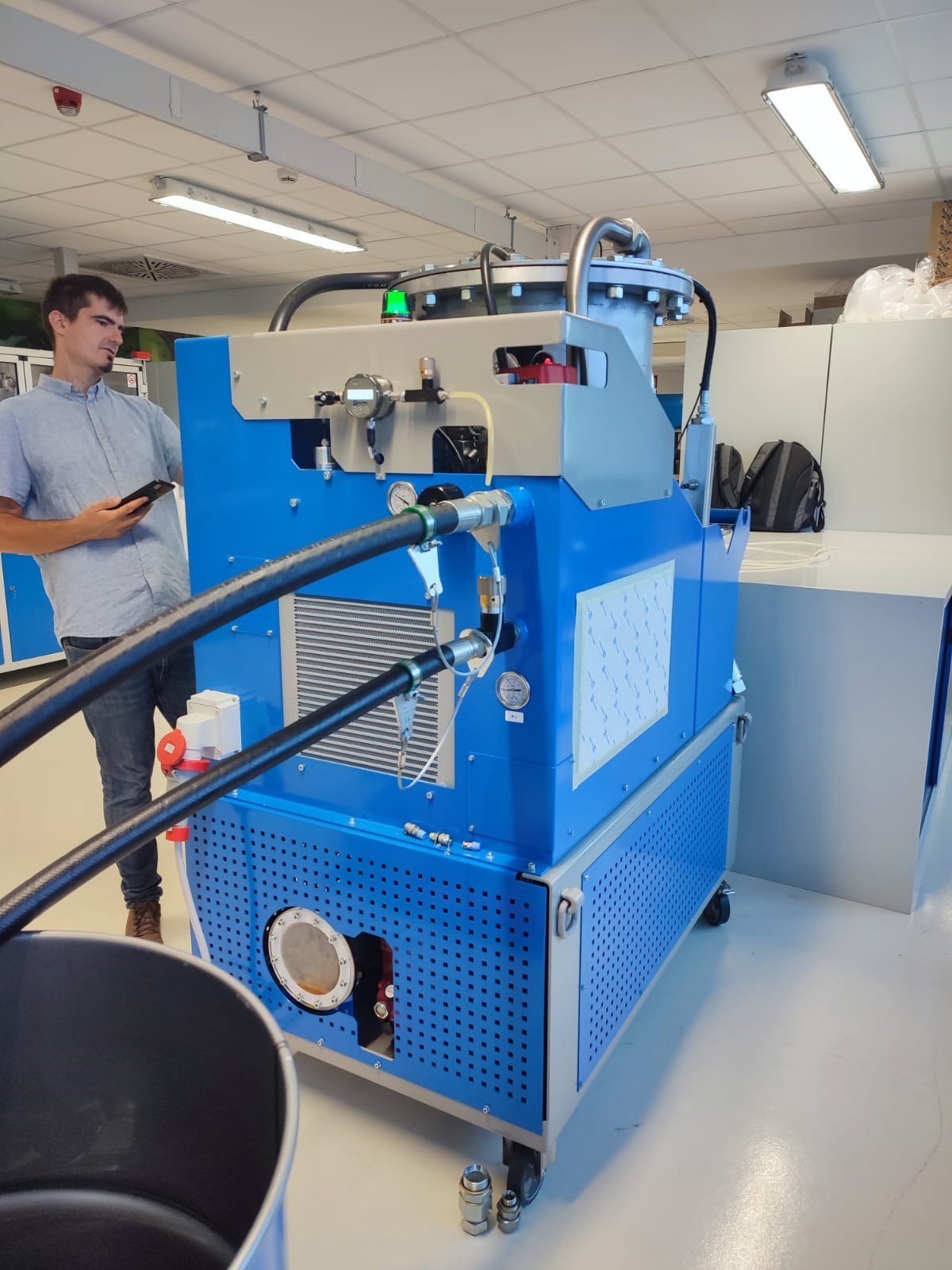

IMEX Filtertechnika Kft. is pleased to present the latest innovation from our renowned partner Filtrec: the FUVD040 SERIES oil vacuum dryer and filtration unit.

The FUVD040 series incorporates revolutionary U5 elements, setting a new benchmark in solid particulate contamination removal. These elements increase particle separation and retention and ensure uninterrupted operation of the units. With the highest dirt holding capacity (DHC) on the market, Filtrec U5 original filters guarantee superior performance, reaching up to 1,000 g in the 10 micron absolute version. The system is also equipped with a particle measuring device, which allows the ISO 4406 cleanliness class to be checked at the same time.

Filtrec FUVD040 series: We revolutionize the performance of hydraulic systems

The impacts of water contamination in the hydraulic system

Water contamination in hydraulic systems is a major challenge, ranging from corrosion and wear of system components to equipment failure and unplanned shutdowns Additionally, water adversely affects fluid properties, leading to oxidation, acid formation, additive precipitation, and viscosity alteration.

Three types of water can affect a system:

  • Free water: Separated from the oil, free water is visually recognizable and can be easily drained from the reservoir.
  • Emulsified water: When mixed with the oil, emulsified water remains in this state and does not settle.
  • Dissolved water: Dissolved water is present in the form of individual water molecules scattered throughout the oil. It is not visible, but can impair system performance.

Mitigating water-related issues with FUVD040

Filtrec's FUVD040 vacuum dehydration provides an effective solution to mitigate water-related problems at minimal cost and ensure optimum system performance. By removing water from the system, vacuum dehydration prevents the formation of free water that can cause serious damage.

Optimized performance

The FUVD040 series achieves an optimized balance between process design and user-friendly operation, facilitating the removal of water and particulate contaminants from hydraulic and high viscosity lubricating oils. Our commitment to uncompromising quality makes Filtrec our recommended partner for maintaining optimum system performance.

Filtrec FUVD040 series: We revolutionize the performance of hydraulic systems

Choose quality

With the FUVD040 series oil vacuum dehydration and filtration unit, we are setting new standards in oil purification technology with our partner Filtrec. Experience outstanding performance, reliability and efficiency with reliable partners for fluid management solutions.

Don't compromise on quality - our hydraulics experts will be happy to advise you.
